Whirlpool Dishwasher Thermal Fuse Location

Ever stare at your trusty Whirlpool dishwasher, wondering why it's suddenly playing hooky, refusing to heat up that water or even dry those dishes? It's a common kitchen conundrum, right? You load it up, press the button, and… crickets. No soothing hum of hot water, no satisfying swish of the drying cycle. Just… cold, damp disappointment. You might be tempted to throw in the towel (pun intended!) and call in the cavalry, but what if the culprit is something surprisingly simple? Something like a tiny, unsung hero called the thermal fuse?

Yeah, I know, "thermal fuse" sounds a bit… technical. Like something you'd find in a sci-fi movie or a really complicated toaster. But trust me, it's not as intimidating as it sounds. Think of it as the dishwasher's personal bodyguard, a little guardian angel that keeps things from getting too hot. And sometimes, like any good bodyguard, it has to step in and take one for the team.

So, where does this little dude hang out? That's the million-dollar question, isn't it? If your Whirlpool dishwasher is having a chilly spell, and you're feeling a bit adventurous (or just want to save a few bucks on a service call!), you might be wondering about the Whirlpool dishwasher thermal fuse location. It's like a mini treasure hunt in your own kitchen!

Why Care About a Tiny Fuse?

Before we go spelunking into the depths of your dishwasher, let's chat for a sec about why this little thermal fuse is so darn important. Imagine your dishwasher is like a perfectly orchestrated symphony. The heating element is the powerful brass section, the water pump is the driving percussion, and the thermal fuse? It’s the conductor, making sure the whole thing doesn't go off the rails.

Its main job is to protect the dishwasher from overheating. It's like a circuit breaker for heat. If the temperature gets a little too wild, potentially damaging other components (or, you know, starting a kitchen fire – yikes!), the thermal fuse steps in and blows, breaking the electrical circuit. Think of it like a tiny sacrifice; it fries itself so the rest of your dishwasher can live to see another wash cycle.

So, when your dishwasher isn't heating or drying properly, a blown thermal fuse is a really common reason. It’s usually the first suspect on our list, especially if everything else seems to be working – the lights come on, the water fills, the pump runs. It’s just… not getting its warm fuzzy feeling.

The Great Fuse Expedition: Where to Look

Alright, intrepid DIY-er, let's get down to business. The exact location of the thermal fuse can vary slightly depending on your specific Whirlpool dishwasher model. It's not usually hanging out in plain sight, like a misplaced sock. You're going to have to do a little digging, or rather, a little unscrewing.

The most common hiding spots for this thermal fuse are:

• Near the Heating Element: This is probably its most logical stomping ground. The heating element is what gets things hot, so the fuse is often nearby to keep an eye on it. Think of it as the bodyguard standing right next to the celebrity.

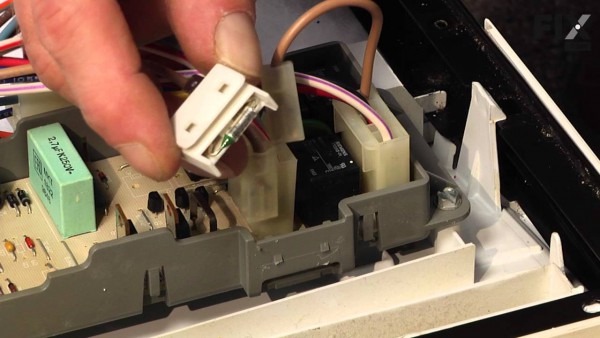

• On the Control Panel or Terminal Block: Sometimes, the fuse is located on the main control board, where all the electrical brains of the operation are housed. It might be a small, cylindrical component with two wires connected to it.
• Inside the Access Panel: Most dishwashers have access panels, usually at the bottom front or back, that allow you to get to internal components. You'll likely need to remove a kick plate or a lower panel to get a good look.

So, how do you actually get there? Grab a screwdriver – usually a Phillips head will do the trick. You’ll probably need to disconnect the power to the dishwasher first. This is super important, people! Don’t be a hero and poke around a live appliance. Unplug it, or better yet, flip the breaker for the dishwasher in your electrical panel. Safety first, always!

Once you've got the power off, you'll likely need to remove a kick plate at the bottom front of the dishwasher. This is often held in place by a couple of screws. Take those out, and gently pull the panel away. Aha! Now you're getting closer to the guts of the machine.

What Does It Look Like? A Tiny Tube of Mystery!

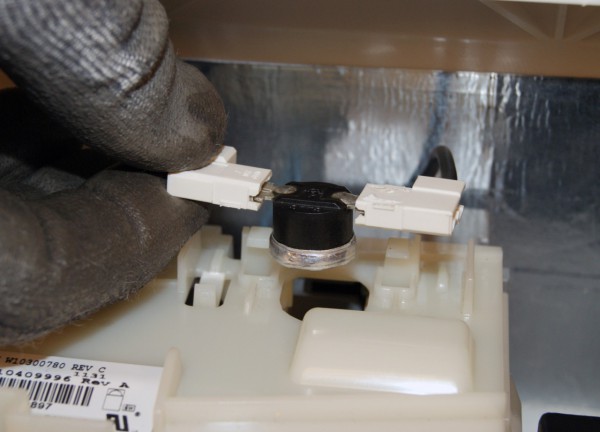

Once you're peeking inside, you're looking for a small, usually black, cylindrical component. It might be a little bit like a miniature resistor or a tiny fuse holder. It will have two wires leading to it, and it's often attached to a metal bracket or directly to the heating element assembly. It’s not exactly screaming, “Here I am!” so you might have to do a bit of careful searching.

Sometimes, it's integrated directly into the heating element itself. In that case, you might not see a separate fuse component. If you can't find anything that looks like a distinct thermal fuse, and you suspect it's the culprit, it might be time to consult your dishwasher's manual or do a quick online search for your specific model number. Those model numbers are like secret codes that unlock a universe of online information!

Pro tip: Take pictures as you go! It's amazing how helpful a quick snapshot can be when you're trying to remember how everything goes back together. It's like having your own personal documentary of your repair journey.

So, You Found It! Now What?

Okay, so you've braved the electrical currents (from a safe distance, of course!) and navigated the internal labyrinth of your Whirlpool dishwasher. You’ve identified a suspect that looks like your thermal fuse. How do you know if it's actually the bad guy?

This is where a trusty multimeter comes in. If you don't have one, they're pretty inexpensive and a great tool for any budding home repair enthusiast. You'll want to test the continuity of the fuse. If the fuse is good, the multimeter will show a continuous electrical path (usually a very low resistance reading). If the fuse has blown, it's broken that path, and your multimeter will show no continuity (often an "OL" or infinite resistance reading).

Important Note: If you're not comfortable using a multimeter or working with electrical components, it's always best to call in a professional. We're just exploring here, not signing you up for a certified appliance repair course!

If your thermal fuse is indeed blown, the good news is that it's usually a relatively straightforward and affordable part to replace. You can often find replacement fuses online by searching for your Whirlpool dishwasher model number and "thermal fuse." Once you have the new part, it's usually just a matter of disconnecting the old one (often with spade connectors) and plugging in the new one. Then, reassemble everything, and hopefully, you'll have a warm, dry, and happy dishwasher once again!

So, the next time your Whirlpool dishwasher decides to take a vacation from heating, don't despair! A little curiosity, a bit of careful investigation, and maybe a friendly chat with your multimeter, and you might just discover that the Whirlpool dishwasher thermal fuse location isn't so mysterious after all. It’s a small part, doing a big job, and sometimes, it just needs a little helping hand to get back on track. Happy dishwashing!
