How To Remove A Crank On A Bike

Ah, the humble bicycle. Our trusty steed, our escape pod, our two-wheeled portal to freedom. Whether you're a weekend warrior conquering local trails, a city dweller navigating bustling streets, or just someone who enjoys the wind in their hair on a leisurely Sunday spin, your bike is more than just a machine. It’s a companion. And like any good companion, sometimes it needs a little TLC. Today, we’re diving into a task that might sound a bit intimidating at first glance, but trust me, it’s as easy as a Sunday morning coffee run: removing your bike’s crank.

Why would you want to remove your crank in the first place? Good question! Perhaps you're upgrading to a slicker, lighter set for that extra edge on your commute, or maybe it’s time for some serious drivetrain maintenance – a good cleaning, a chain replacement, or even swapping out those pedals for something with a bit more grip for those impromptu dance parties on the pavement. Whatever the reason, knowing how to unhook this crucial part of your bike’s anatomy will empower you to do more, learn more, and keep your beloved ride in tip-top shape. Think of it as giving your bike a spa day, but with tools instead of cucumber slices.

Before we get our hands greasy, let’s talk tools. You’re not going to need a whole mechanic’s garage. Most modern bikes use one of two main types of crank systems, and thankfully, the tools required are pretty standard. You’ll likely need a hex wrench (or Allen key) – usually a 6mm or 8mm is your magic wand for this operation. Then, there’s the crank puller tool. Now, don’t let the name scare you! These are readily available at any bike shop or online, and they are specifically designed for this job. They’re not expensive, and once you have one, it’s a tool that will serve you well for years. Think of it as an investment in your bike’s future. We’ll also want a bit of degreaser and some rags – because, well, bikes can be messy, and we like to keep things tidy, right? A little bit of anti-seize compound might also be handy for reassembly.

Now, let’s break down the two main players in the crank world: square taper and modern external bearing (often called Hollowtech II, GXP, or similar, depending on the brand). Each has its own personality, but the principle of removal is surprisingly similar.

The Classic Charm of Square Taper

If your bike has that classic, almost retro vibe, chances are it’s sporting a square taper crankset. This design has been around forever, and there’s a reason for its longevity: it’s robust and reliable. Think of it as the dependable, go-to friend of bike components.

First things first, identify which side you’re tackling. Most bikes have two crank arms, one for each foot. You’ll typically start with the non-drive side – that’s the one without the chainrings attached. Look at the center of that crank arm where it meets the bottom bracket spindle. You should see a bolt, usually a 6mm or 8mm hex bolt.

This bolt is what secures the crank arm to the spindle. Loosen this bolt. You’ll want to turn it counter-clockwise, just like you’re opening a jar of pickles. Keep going until the bolt is completely out. Don’t lose this little guy; it’s important!

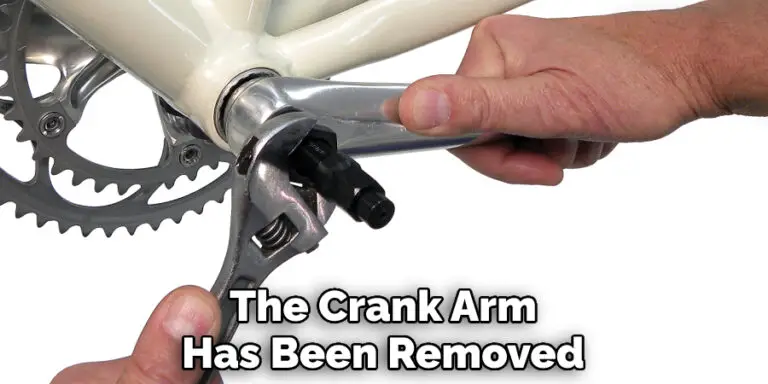

Once the bolt is out, you’ll see the end of the spindle peeking out. Now, this is where our trusty crank puller comes in. Crank pullers usually consist of two main parts: a body and a handle. The body has threads that screw into the crank arm itself. You’ll see these threads right where the bolt used to be. Screw the crank puller body into the crank arm. Make sure it’s threaded in nice and snug, but don’t force it. You want it to grip firmly.

The magic happens when you start screwing in the handle of the crank puller. This handle presses against the end of the bottom bracket spindle. As you turn the handle clockwise, it pushes the spindle inwards, and because the crank puller body is still attached to the crank arm, it effectively pulls the crank arm off the spindle. It’s a clever bit of engineering, like a tiny hydraulic press at your fingertips. You’ll feel a satisfying pop or creak as the crank arm loosens its grip. Once it’s loose, you can usually just pull the crank arm right off. Easy peasy!

Now, for the drive side (the one with the chainrings). The process is similar, but there’s a little extra consideration because of the chainrings. Again, you’ll find a bolt holding the crank arm on. Remove that bolt using your hex wrench. Once the bolt is out, you’ll need your crank puller. The same crank puller tool you used on the other side should work perfectly. Screw the body in, then use the handle to press the spindle and gently coax the crank arm off. Voila! Both cranks are liberated.

Pro Tip: If things feel really stuck, a gentle tap with a rubber mallet on the crank puller handle can sometimes help break the bond. But remember, gentle is key! We’re not trying to go full Thor here.

The Sleek Sophistication of Modern External Bearings

If your bike looks a bit more contemporary, especially if it’s a road bike or a mountain bike from the last decade or so, you're probably rocking a modern external bearing crankset. These systems are known for their stiffness and smooth rolling. Think of them as the athletes of the crank world – efficient and powerful.

The process here is a little different, and often, you might only need your hex wrenches. Let's focus on the non-drive side first. You’ll see a crank arm, and where it meets the bottom bracket, you'll likely find a large preload cap. This cap is usually made of plastic or metal and might have markings or notches. Sometimes, you can just unscrew this by hand, but often you’ll need a specific tool, or if it’s a simpler design, a large hex wrench (often 8mm) might be all you need to loosen it.

Once the preload cap is loose or removed, look at the crank arm itself. You should see one or two bolts on the outside of the crank arm, clamping it onto the bottom bracket spindle. These are usually 8mm hex bolts. These bolts are the gatekeepers! You’ll need to loosen and remove them. Depending on the brand, you might have two bolts that work together, or a single bolt. The key here is that these bolts are clamping the crank arm onto the spindle, not threading directly into it like the square taper.

Once those clamping bolts are out, the crank arm should be free. You might need to give it a gentle wiggle or a tap to persuade it off the spindle. Unlike square taper, you don’t usually need a dedicated crank puller tool for this type of system. The design itself allows for easier removal once the clamping mechanism is undone.

Now, for the drive side on modern external bearing systems. This side is a bit different. The drive-side crank arm is often integrated with the spindle, and it slides through the bottom bracket. You typically don’t remove this crank arm in the same way. Instead, you’re usually focused on removing the entire crankset from the bottom bracket shell.

This often involves loosening a lockring on the drive side of the bottom bracket, and then the entire crankset, spindle and all, can be slid out from the non-drive side. The specific tools and procedures can vary quite a bit between manufacturers (Shimano’s Hollowtech II, SRAM’s GXP, etc.), so for this side, it’s always a good idea to consult the manufacturer’s specific instructions for your crankset model. Sometimes, a special bottom bracket tool is required to loosen the lockring.

Fun Fact: The term "external bearing" refers to the fact that the bearings (the little rollers that allow your crank to spin smoothly) are located outside the bottom bracket shell, rather than inside it like on older, internal bearing systems. This generally leads to increased stiffness and better sealing against the elements.

Reassembly: The Reverse Symphony

Once you’ve finished your maintenance, cleaning, or upgrading, it’s time to put everything back together. The good news? Reassembly is almost always the reverse of removal.

For square taper, slide the crank arm back onto the spindle, making sure it’s aligned correctly. Then, insert and tighten the bolt. A little dab of anti-seize compound on the bolt threads can prevent future headaches and make removal easier down the line. Tighten it up firmly.

For modern external bearings, slide the drive-side crank arm and spindle into the bottom bracket. Then, reattach the non-drive side crank arm, ensuring the clamping bolts are aligned. Tighten those bolts gradually and evenly, alternating between them if you have two, to ensure the crank arm is seated properly. Then, reattach the preload cap, adjusting it to the manufacturer’s recommended tension.

Cultural Reference: Think of reassembly like putting together IKEA furniture, but with less swearing and a much greater sense of accomplishment. Each piece needs to fit just so, and when it’s done, you have something functional and beautiful.

A Moment of Reflection

Removing and reattaching your bike’s crank might seem like a small, technical task, but there’s a certain satisfaction that comes with it. It’s a tangible connection to the mechanics that keep us moving. It's a reminder that with a little knowledge and the right tools, we can be more self-sufficient. In a world that often encourages us to be passive consumers, learning to do these things ourselves is empowering. It’s about understanding the intricate systems that support our adventures, big and small.

Just like learning to cook a new dish, or tending to a small garden, there’s a quiet joy in mastering these practical skills. It’s not about becoming a professional mechanic; it’s about fostering a deeper appreciation for our belongings and for the simple act of creating and maintaining. So, the next time you look at your bike’s crank, don’t see it as a mystery component. See it as an opportunity to learn, to engage, and to connect with your ride on a whole new level. And who knows, you might just find yourself enjoying the process as much as the ride itself.
