How To Measure Current In A Circuit

Hey there, fellow tinkerer! Ever find yourself staring at a circuit board, wondering, "How much oomph is actually going through this thing?" You know, like trying to figure out how many tiny electric squirrels are running the show? Well, my friend, you're about to become a certified current-measuring guru! It's not as scary as it sounds, I promise. Think of it like checking the flow of water in a pipe – we just need the right tool to see how much is gushing through.

So, what exactly is this "current" we're talking about? In simple terms, it's the flow of electric charge. Imagine electrons as super-tiny, super-energetic marbles zipping around. Current is basically how many of those marbles are passing a certain point in the circuit every second. We measure it in something called Amperes, or Amps for short. So, if you hear someone say "this circuit draws 2 Amps," they mean 2 Amps worth of those electron marbles are busy working!

Now, to measure this flow, we need a trusty sidekick. Drumroll, please... it's the multimeter! If you don't have one, seriously, get one. They're like the Swiss Army knife of electronics. They can measure voltage, resistance, and, you guessed it, current. Most multimeters have a dial or buttons to select what you want to measure. We're going to focus on the current setting, which is usually marked with a capital 'A' or sometimes a wavy line (that's the symbol for current, fancy, right?).

But here's a little secret, a quirky detail that trips up a lot of beginners: to measure current, you need to be a bit of a circuit-disrupter. Shocking, I know! Unlike measuring voltage, where you can just poke the probes onto two points without breaking anything, measuring current requires you to break the circuit and insert your multimeter in series. Think of it like this: if you want to know how much water is flowing through a hose, you can't just stick a thermometer in the middle of it. You have to cut the hose and put a flow meter in the gap, right? Same idea!

So, let's get down to business. You've got your circuit, your multimeter, and a healthy dose of curiosity. First things first, you need to identify where you want to measure the current. Are you curious about how much current your LED is using? Or maybe the main power supply to a whole gadget? Pick your target!

Once you've got your spot, it's time for the surgical strike: disconnect the power! This is super, super important. You don't want to be fiddling with live circuits unless you're a seasoned pro or have a death wish. Seriously, always turn off the power before you start messing with wires. Safety first, then curiosity!

Now, here's the key move: you need to break the connection at your chosen point. This might mean desoldering a wire, removing a component, or simply pulling apart a connector. It's like opening up a river to install your flow meter. Don't be shy, just gently break that path.

With the circuit broken, you're going to connect your multimeter probes in series. This means one probe goes to one side of the break, and the other probe goes to the other side. Imagine you're plugging your multimeter into the gap you just created. If you're measuring a wire, one probe touches the end of the wire, and the other probe touches the point where the wire was originally connected.

And this is where many a brave soul stumbles: plugging the probes into the right holes on your multimeter. Most multimeters have at least two sets of probe jacks. One is usually for voltage and resistance (often labeled 'VΩmA' or similar). The other, the one you want for current, is often labeled 'A' or '10A' (for higher current measurements). Make sure you're using the correct jack for current, otherwise, you might get a very un-fun surprise, like a blown fuse inside your multimeter (and trust me, that's a bummer).

You'll also want to set your multimeter dial to the appropriate current range. If you're measuring a small current, like for an LED, you might use the milliamp (mA) setting. For larger currents, you'll need the Amp (A) setting. If you're unsure, start with a higher range (like 10A) and then work your way down if you get a very small reading. It's better to be safe than to blow a fuse. Think of it as starting with a wide net and then casting a finer one if needed.

Okay, so you've got the circuit broken, the probes connected correctly, and the multimeter set to the right mode and range. Drumroll for real this time… turn the power back on!

And there you have it! Your multimeter should now display a reading. This is the amount of current, in Amps or milliamps, flowing through that part of your circuit. Pretty neat, huh? It’s like you just eavesdropped on the secret conversations of your electrons.

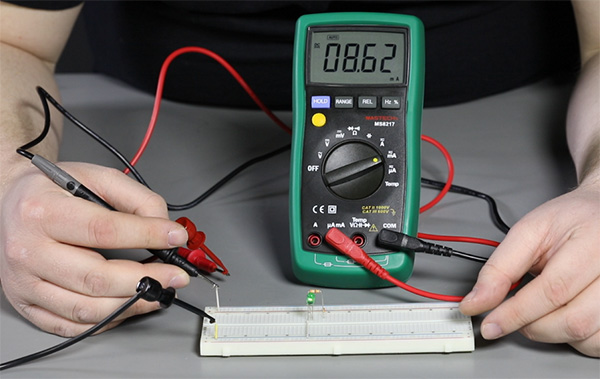

Let's break down a couple of common scenarios. Say you're working with a simple LED circuit. You've got a power source, a resistor (to protect the LED, because LEDs are a bit sensitive), and the LED itself. To measure the current going through the LED, you would disconnect the wire going to the LED (or from the LED, it doesn't matter which side). Then, you'd plug your multimeter's red probe into the positive side of the break and the black probe into the negative side of the break (or vice versa, depending on your multimeter's orientation, but consistency is key!). Make sure your multimeter is set to the milliamp (mA) range for this, as LEDs usually draw small amounts of current.

Another example: you want to know how much power your little hobby motor is drawing. This might involve a bit more current, so you'd set your multimeter to the Amp (A) range. Again, you'd break the connection in the wire leading to the motor and insert your multimeter in series.

What if you get a reading of '0.00' or something super tiny when you expect something more? Don't panic! First, double-check your probe connections on the multimeter. Are they in the 'A' or '10A' jack? Second, check your multimeter's dial. Are you on the right range? If you're on mA and the current is actually in Amps, you'll get a reading of practically zero. Try switching to the Amp range. And, of course, make sure your circuit is actually powered on!

On the flip side, what if your multimeter shows a crazy high reading or just says 'OL' (which often means 'overload' or 'open loop')? Whoa there! This usually means you've set your multimeter to too low a current range. Immediately turn off the power and switch your multimeter to a higher current range, like 10A. It's like trying to measure a flood with a teaspoon – it's just not going to work!

Remember, measuring current is a bit more hands-on than voltage or resistance. You're literally becoming part of the circuit, albeit temporarily. It requires a little more thought about where to break the circuit and how to reconnect it through your meter. It's like being a temporary dam keeper, letting the flow pass through your measuring station.

And a final, crucial tip: always read your multimeter's manual. Every multimeter is a little bit different, and the manual is your best friend for understanding its specific features and safety guidelines. It's not the most exciting read, I admit, but it can save you from a lot of headaches (and blown fuses).

So there you have it! Measuring current might seem a tad intimidating at first, but with a little practice and the right precautions, it becomes second nature. You're not just building circuits anymore; you're understanding their lifeblood. You're getting to the heart of how things work. Keep experimenting, keep learning, and never be afraid to get your hands a little bit "electrically dirty." Every measurement you take, every circuit you understand, is another step in your awesome journey as a creator and a fixer. You've got this, and the world of electronics just got a little bit clearer for you! Now go forth and measure with confidence!
