How Do You Test A Camshaft Position Sensor

Hey there, fellow gearheads and DIY car enthusiasts! Ever had that moment where your car’s acting a bit… off? Like it’s sputtering, stalling, or just plain refusing to fire up? Before you start envisioning a full-blown engine rebuild costing more than your rent, let’s talk about a tiny, often overlooked culprit: the camshaft position sensor. It’s not exactly the star of the show under your hood, but trust me, this little guy plays a huge role in making your engine sing. And guess what? Testing it yourself isn’t some rocket science mission. We're talking about something you can totally tackle with a bit of patience and a few handy tools. So, grab your favorite beverage, put on your thinking cap (or maybe just a cool baseball cap), and let’s dive into the wonderfully weird world of camshaft position sensors!

First off, what is this magical little doodad? Think of it as the engine’s conductor. Your engine has two main brains: the crankshaft position sensor (which tells the ECU how fast the engine is spinning and where the crank is) and our star, the camshaft position sensor. The camshaft, as you might know, controls your engine’s valves. The position sensor tells the ECU exactly where those valves are at any given moment. This intel is crucial for things like fuel injection timing and ignition timing. Without it, your engine is basically flying blind, and that, my friends, is a recipe for automotive disaster. It’s like trying to bake a cake without knowing when to add the flour – messy and usually ends up tasting… well, not great.

So, how do you know if your camshaft position sensor has decided to take an early retirement? Well, the check engine light is usually your first clue. It's like the car's way of saying, "Hey, something's not quite right here, pal!" Other symptoms can include: rough idling (your car shakes like it’s had too much coffee), stalling (especially at idle or when coming to a stop), hard starting (you crank and crank, and it just groans), and even poor fuel economy (your wallet will definitely notice this one). If you’re experiencing a combination of these, it’s time to investigate. It's not a guarantee, mind you. There are other gremlins that can cause similar symptoms, but the camshaft position sensor is definitely on the suspect list.

The Tools of the Trade: What You'll Need

Alright, let’s get down to business. You don’t need a mechanic’s entire toolbox to test this thing. Here’s a basic rundown of what you’ll want to have on hand:

• A Multimeter: This is your best friend for electrical testing. Make sure it can read AC and DC voltage, and resistance (ohms).
• Basic Hand Tools: You’ll likely need a set of sockets and wrenches to remove anything blocking access to the sensor. Maybe a screwdriver or two. Nothing fancy!
• Your Car's Repair Manual (or a Reliable Online Resource): This is absolutely essential! It will tell you the specific location of the sensor on your vehicle, its wiring diagram, and the expected readings for voltage and resistance. Don't skip this step. It's like trying to navigate without a map – you'll just end up driving in circles.
• Safety Glasses: Because safety first, always! We don't want any unexpected sparks or grime in your eyes.
• A Helper (Optional, but Recommended): Sometimes having an extra set of hands to turn the key or hold a light can make life a whole lot easier. Think of them as your trusty sidekick.

Got your gear ready? Awesome! Let’s move on to the actual testing.

Locating the Suspect: Where is This Thing Hiding?

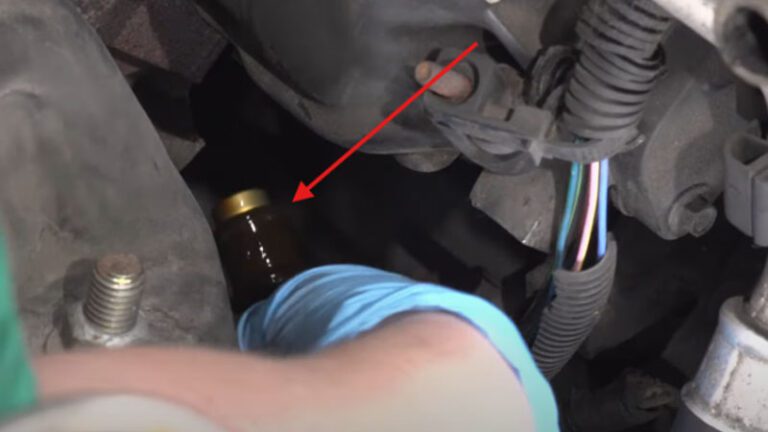

This is where your repair manual or online resource comes in handy. The camshaft position sensor is usually located near the timing belt or timing chain, often on the cylinder head or the front of the engine. It's typically a small, cylindrical component with a connector for the wiring harness. Sometimes, it might be a little tricky to get to. You might have to remove an air intake hose, a plastic engine cover, or even a bracket. Patience, grasshopper!

Don't be discouraged if it's not immediately obvious. Think of it as a treasure hunt. The reward? A smoothly running car! If you’re really struggling, a quick Google search for "[Your Car Make Model Year] camshaft position sensor location" will likely yield pictures or videos to guide you. Seeing it in action can make all the difference.

The Voltage Test: Is It Getting Juice?

This is where the multimeter comes into play. We want to see if the sensor is receiving power and if it's sending out a signal when the engine is cranking. This test is usually done with the sensor still plugged in, so you’ll need to access the wiring harness leading to it.

Step 1: Find the Right Wires. Consult your repair manual! It will show you which wires on the connector are for power (usually 5 or 12 volts), ground, and the signal output. This is super important. Probing the wrong wires could potentially damage something, and nobody wants that. It’s like trying to plug in your phone charger into a USB port for your TV – it’s just not going to work and might even cause damage.

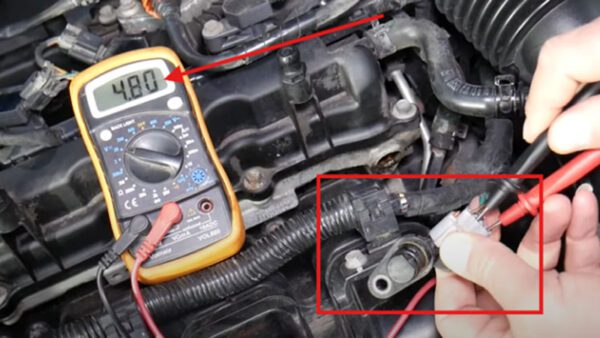

Step 2: Connect the Multimeter. Set your multimeter to the appropriate DC voltage setting (e.g., 20V). Carefully insert the positive probe of your multimeter into the wire connector that is supposed to receive power. The negative probe goes to a good ground point on the engine block or chassis.

Step 3: Crank the Engine. Have your helper (or do it yourself if you’re a multitasking whiz!) turn the ignition key to the 'start' position, just enough to crank the engine, but not to start it. You should see a voltage reading on your multimeter. If you get a steady reading that matches what your manual specifies, the sensor is likely getting power.

Step 4: Check the Signal Wire. Now, move the positive probe to the signal wire. Again, consult your manual for the correct one. With the engine cranking, you should see a fluctuating voltage reading. This indicates the sensor is detecting the rotation of the camshaft and sending a signal. The exact pattern of the fluctuation can vary, but you should see something changing. If you get a steady zero or a constant voltage, that’s a bad sign.

If the voltage test shows no power or no signal, it could be the sensor itself, or it could be an issue with the wiring, the ECU, or even a fuse. But for now, we’re focusing on the sensor. It’s like checking if your lights are on before blaming the bulb.

The Resistance Test: Is the Sensor Internally Sound?

This test is done with the sensor disconnected from the wiring harness. We’re essentially checking the internal resistance of the sensor itself.

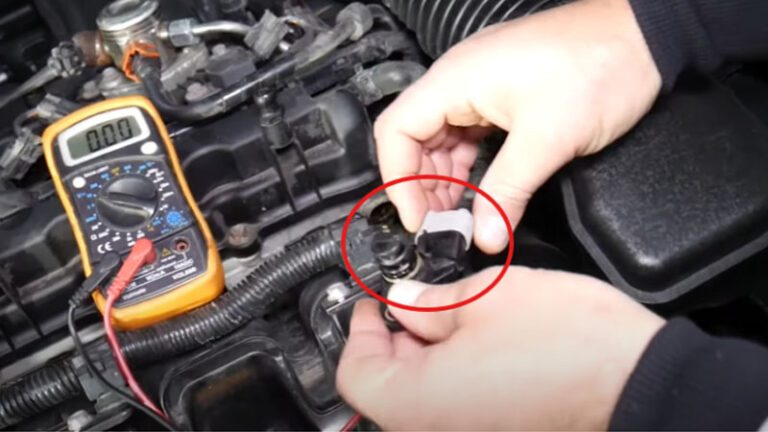

Step 1: Disconnect the Sensor. Carefully unplug the electrical connector from the camshaft position sensor. There might be a small clip or tab you need to press. Don't force it!

Step 2: Set Your Multimeter. Switch your multimeter to the resistance (ohms) setting. Again, your repair manual is your best friend here. It will tell you the expected resistance range for a good sensor.

Step 3: Test the Pins. Now, you'll probe the pins on the sensor itself. Your manual should indicate which pins to test. Usually, you'll be testing between the signal pin and either the ground or the power pin, or sometimes between two specific pins. Touch the probes of your multimeter to the correct pins.

Step 4: Read the Results. You should get a resistance reading within the range specified by your repair manual. If the reading is open circuit (OL or infinite resistance), or very low resistance (close to zero ohms), or significantly outside the specified range, it’s a strong indicator that the sensor has failed internally.

This resistance test is like checking the integrity of the wires inside the sensor itself. If it’s broken or shorted internally, it’s not going to do its job.

What If the Readings Are All Over the Place?

Sometimes, you’ll get readings that are borderline, or that fluctuate inconsistently. This can be a bit trickier. A sensor that’s failing might not have completely failed yet, but it’s on its way out. This is often referred to as an intermittent failure. These are the most frustrating because they can be hard to diagnose and might not always trigger the check engine light.

If you suspect an intermittent issue, you can try wiggling the wiring harness leading to the sensor while cranking the engine to see if you can influence the readings. A significant change in voltage or resistance when you move the wires can indicate a problem with the wiring itself or a loose connection within the sensor.

Another helpful trick is to sometimes heat or cool the sensor slightly (carefully, of course!) and re-test. A sensor that's failing due to temperature fluctuations might behave differently when warm versus cold. However, be cautious with this method and avoid using extreme heat or cold that could damage the component.

When in Doubt, Replace It!

Let’s be honest, camshaft position sensors are usually not super expensive. If your tests are inconclusive, or if you’re getting readings that are right on the cusp of failure, sometimes the easiest and most cost-effective solution is simply to replace the sensor. It’s often a relatively straightforward DIY job, and a new sensor will give you peace of mind.

Think of it as a preventative maintenance measure. If your car is already telling you something might be wrong, and the sensor is a likely candidate, why not swap it out and see if your problems disappear? You’ve got nothing to lose but a few dollars and maybe an hour or two of your time. Plus, the satisfaction of fixing it yourself is priceless!

Putting It All Back Together and Celebrating Your Success!

Once you’ve performed your tests, and especially if you’ve decided to replace the sensor, make sure you reassemble everything correctly. Double-check that all connectors are secure, all bolts are tightened, and any removed components are put back in place. Clear your check engine light using an OBD-II scanner (if you have one). Then, start your car and see if those pesky symptoms have vanished. Fingers crossed, they have!

And if, by some miracle, your car is now purring like a contented kitten, give yourself a pat on the back! You’ve just tackled a diagnostic challenge and emerged victorious. You’ve saved yourself time, money, and the stress of dealing with a grumpy car. That, my friend, is something to be truly proud of. You’re not just a car owner; you’re a car whisperer! So go ahead, crank up your favorite tunes, enjoy that smooth ride, and remember the day you bravely faced the camshaft position sensor and won. You’ve got this!
